Carbon Dioxide Portable Fire Extinguishers

GRAP FIRE INDUSTRIES
carbon-di-oxide-portable-fire-extinguisher1


Technical Specification



Portable Fire Extinguisher

Trolley Mounted Fire Extinguisher

Conforming IS Specn.

15683

15683

15683

2878

2878

2878

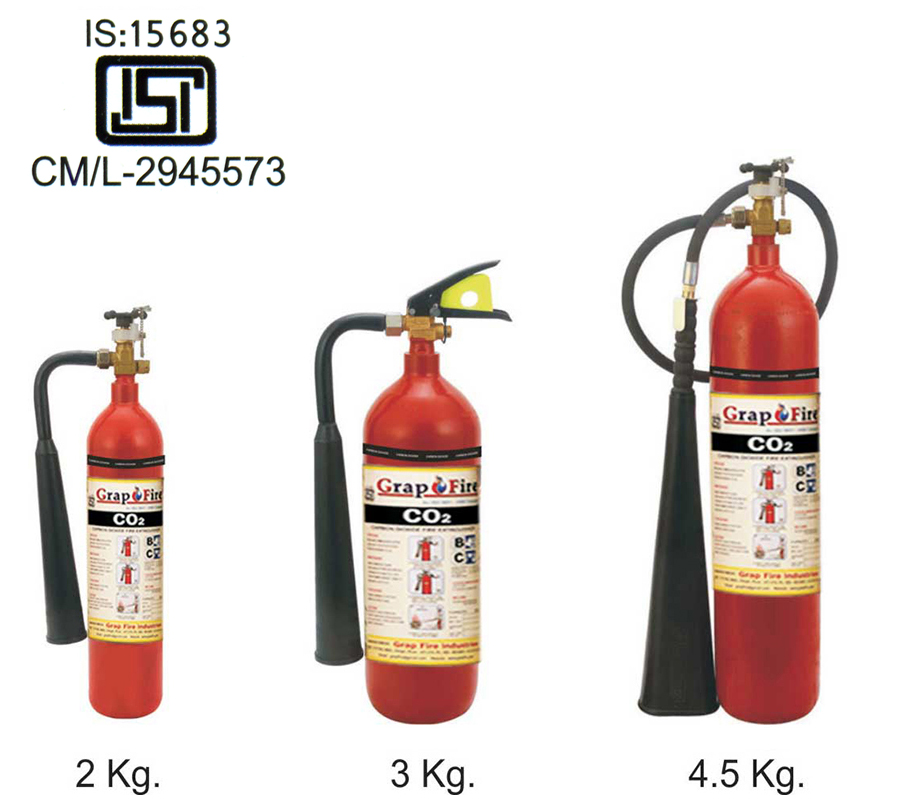

Capacity (Kg)

2

3

4.5

6.5

9

22.5

Falling Ratio

0.667

0.667

0.667

0.667

0.667

0.667

Type of Extinguishe

Co2 Type

Co2 Type

Co2 Type

Co2 Type

Co2 Type

Co2 Type

Type of Extinguishing Media

CO2 Gags

CO2 Gags

CO2 Gags

CO2 Gags

CO2 Gags

CO2 Gags

Expellant
Min. Effective Discharge (%)

Self
95

Self
95

Self
95

Self
95

Self
95

Self
95

Min. discharge Time (Sec.)

More than 8

More than 8

More than 8

10 to 20

15 to 36

20 to 60

Min. Throw (mtr.)

1

1

2

-

-

-

Operating Position

Upright

Upright

Upright

Upright

Upright

Upright

Opperating Valve(IS 3224)

Wheel / Squeeze
Grip Type

Wheel / Squeeze
Grip Type

Wheel / Squeeze
Grip Type

Wheel / Squeeze
Grip Type

Wheel / Squeeze
Grip Type

Wheel / Squeeze
Grip Type

Operating Temperature range (C°)

(-)30 to (+)55

(-)30 to (+)55

(-)30 to (+)55

(-)30 to (+)55

(-)30 to (+)55

(-)30 to (+)55

Fire Rating

8B, C

13B, C

21B ,C

-

-

-



Application


Class B Fire : Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatile, Liquids etc.
Class C Fire : Flammable Gasses, Live Electrical Equipments, Industrial Gases, Electrical Installation etc.
Also available in 45 kgs
